FireBase® SG-1700 Smoke Generator w/ Flight Case and 5L Bottle

SKU: SG-FB-1700-CASED
  • High Output Compact Smoke Generator
  • 1700W / 110 Volt / 40,000 CFM
  • Integrated timer and adjustable output with digital technology
  • DMX serial production
  • Continuous fogging possible
  • SG-XLR commander wired remote
Price: $2,500.00
Retail: $3,000.00
  • High Output Compact Smoke Generator
  • 1700W / 110 Volt / 40,000 CFM
  • Integrated timer and adjustable output with digital technology
  • DMX serial production
  • Continuous fogging possible
  • SG-XLR commander wired remote
Availability: In Stock
Usually ships In 1-2 Business Days
In Stock and Ready to Hop Froggy's Fog Frog
OOS Icon
Out of Stock
OOS Icon
Back Order
ETA Date :
Free Shipping Truck Free Shipping

Product Details

Are you a government entity and want reduced contract pricing on these products? Call our Sales Team now to configure your account for future purchases. 615-469-4906 x 1

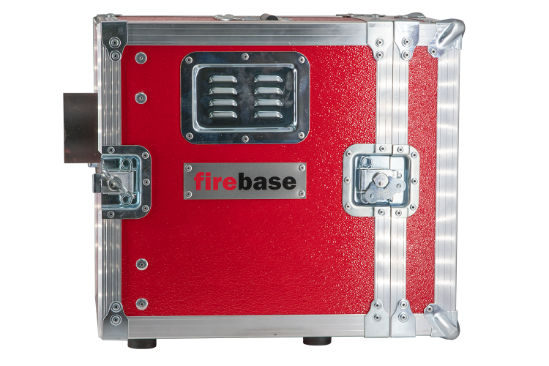

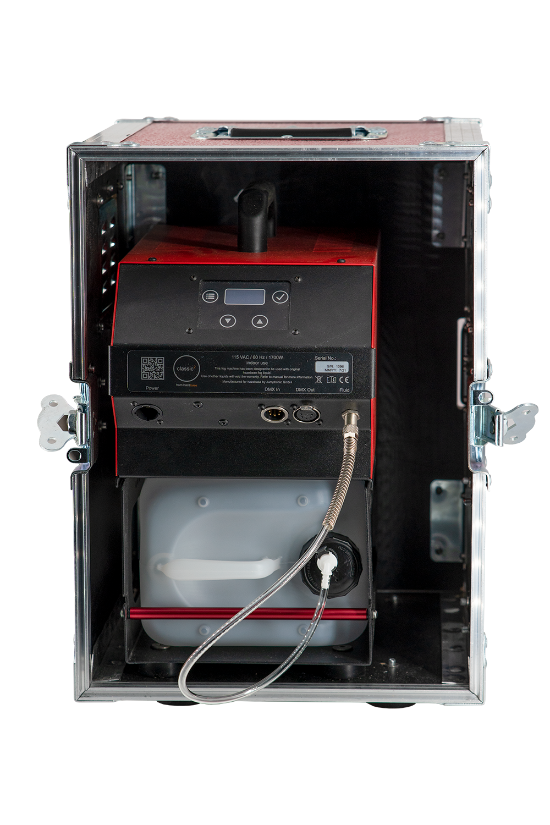

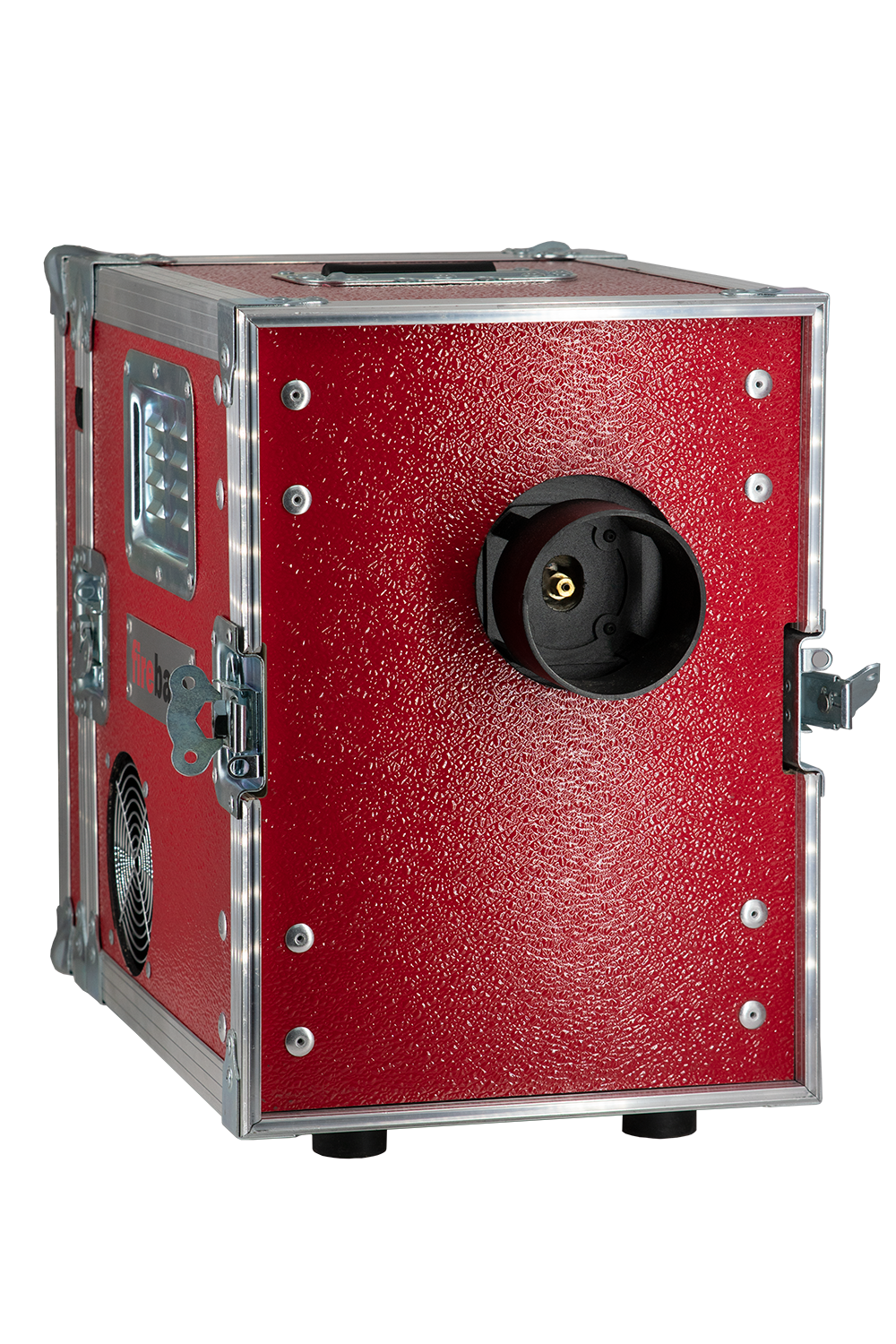

FireBase® SG-1700 Compact Continuous Smoke Generator - High Output, 1700W (40,000 CFM) FireBase 1700 Compact and Powerful Smoke Generators with continuous output and a full 2 year warranty. FireBase is manufactured in Germany, and is characterized by high reliability and robustness. All FireBase units are fully programmable with digital controls. There is no scenario you can through at FireBase that it will not dominate the competition. The German engineering and extreme efficiency of these smoke generators sets them apart from anything else available. The Cased Units are completely housed in a custom case which makes for easy setup and transportation as well as protection for years to come.

DMX serial production

1700W / 110 Volt / 40,000 CFM

Integrated timer

SG-XLR commander wired remote

Adjustable with digital technology

Continuous fogging possible

High output

Highly Efficient

Extreme Smoke to Low Power Ratio

Continuous High Volume Smoke

Small to Large Scale Training

Specifications

Physical
Length: 22"
Width: 13"
Height: 19"
Net Weight: 58.8 Lbs.


Performance
Fluid consumption (100%): 120 ml/min (1%): 35 ml/min
Maximum operating time, maximum output: 40 Min.
Ready time: 12 Min.


Control and Programming
Control options: DMX / RDM, Cable remote control, radio remote control (optional), integrated timer, stand-alone
Fog Variable output control, 0-100%
DMX channels: 1

Protocols: DMX512, RDM, Modbus RTU, JT remote




Construction
Housing: Metal
Color: Red and Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir


Installation
Mounting: Standing
Orientation: Up to +/-40° from horizontal

Connections

AC Power: PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR

Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1700 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:


Included Items

  • Power input cable: PowerCON TRUE1
  • Fluid reservoir, 5L Tank
  • SG-XLR commander wired remote



Optional Accessories

Fog Scent Additives

Dial Remote

12' XLR cable



Approved fluids*:

Water-Based Training Smoke Fluids



*Various sizes available - contact us or see 'Fluids' product pages for details
