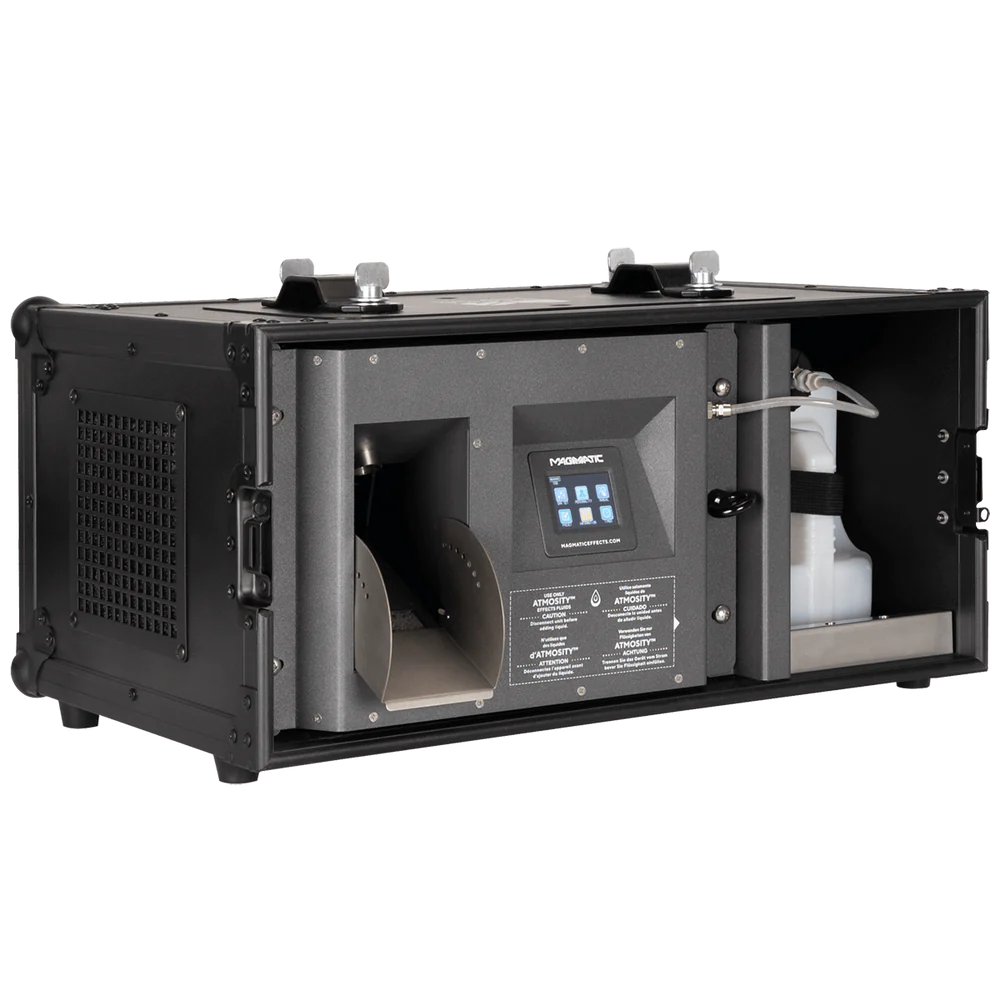

Magma Prime Tour is a professional-grade lighting solution. The Magma Prime Tour™ water-based fazer delivers a high-volume, dry haze effect with efficient fluid consumption, thanks to its advanced technology. The unit is equipped with a user-friendly Full Color LCD touchscreen, intuitive DMX-512 and RDM control, a rugged road case with all wiring neatly located on the back, and optional wired and wireless remote control options for added flexibility.
PERFORMANCE
Rated Power: 1500W
Heater Power: 1350W
Over-Voltage Protection (OVP)
DMX-Activated
Sleep Mode
Max Output: 20,000 CFM* (cubic feet per minute)
Ready Time: Initial = 35 Seconds*
Fluid Capacity: 1.48 gallons (5.6 liters)
Fluid Consumption: ~0.338 oz/min (10 ml/min)
CONSTRUCTION
Thermally Protected Heat Exchanger
Tour Ready Road Case with Handle
Rear Wiring for a Clean Setup
CONTROL
5 DMX Channel Modes (1 / 2/ 3 / 5/ 6)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Supports Optional Aria X2 Wireless
DMX Transceiver Module
Supports Optional MAGRF RF Remote and Wired Remotes
MagRemote VIDI
CONNECTIONS
Locking 5-pin XLR In amp; Out ports
IP65-rated Locking Power In Connector
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.3 in. (618mm)
Width: 12.2 in. (310mm)
Height: 20.4 in. (518mm)
Weight: 69.5 lbs. (31.5kg)
ELECTRICAL
AC120V 60Hz (US Version)
Max Power Consumption: 1500W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)
