PERFORMANCE
Rated Power: 120W
Max. fan volume: (17m3/min 600CFM (US) - 15m3/min 530CFM (EU)
Fan angle: 0-360°
Fan speed range: 750-2800rpm (US) - 750-2550rpm (EU)
CONSTRUCTION
Durable aluminum housing
Compact lightweight mobile design
CONTROL
3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

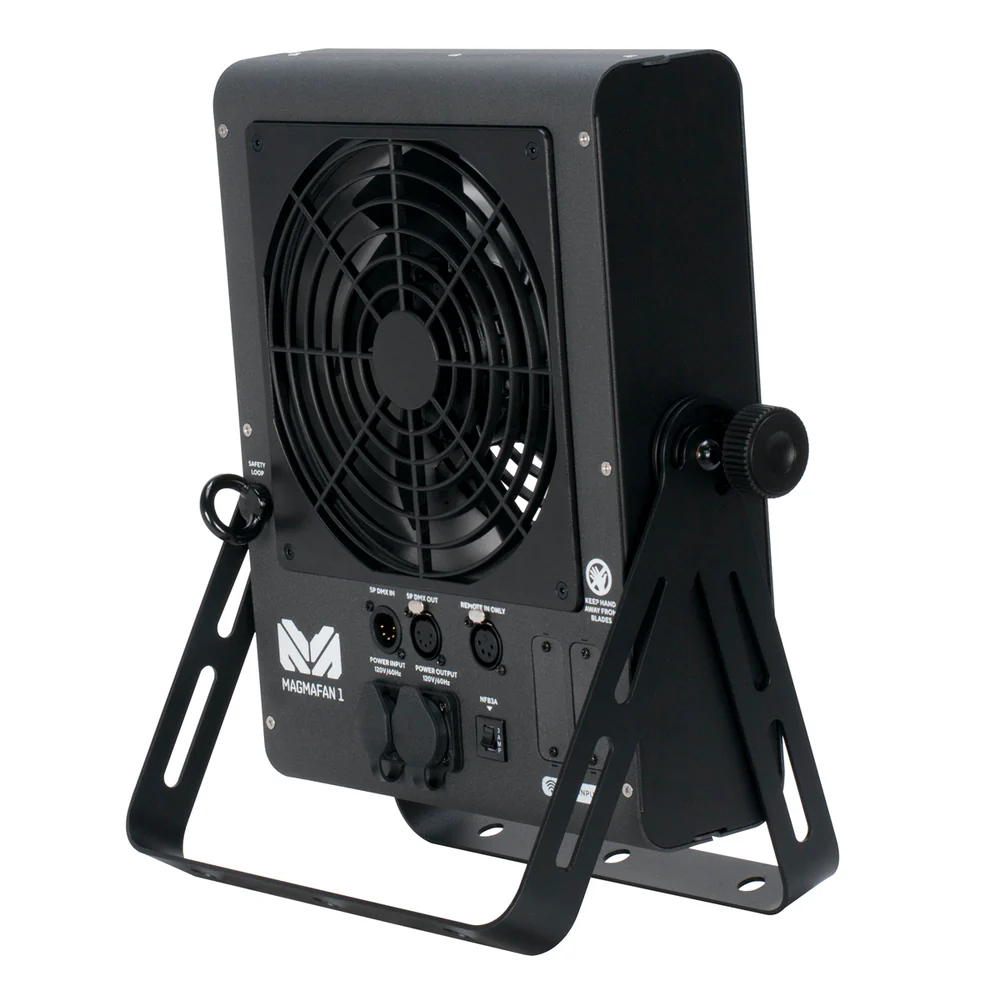

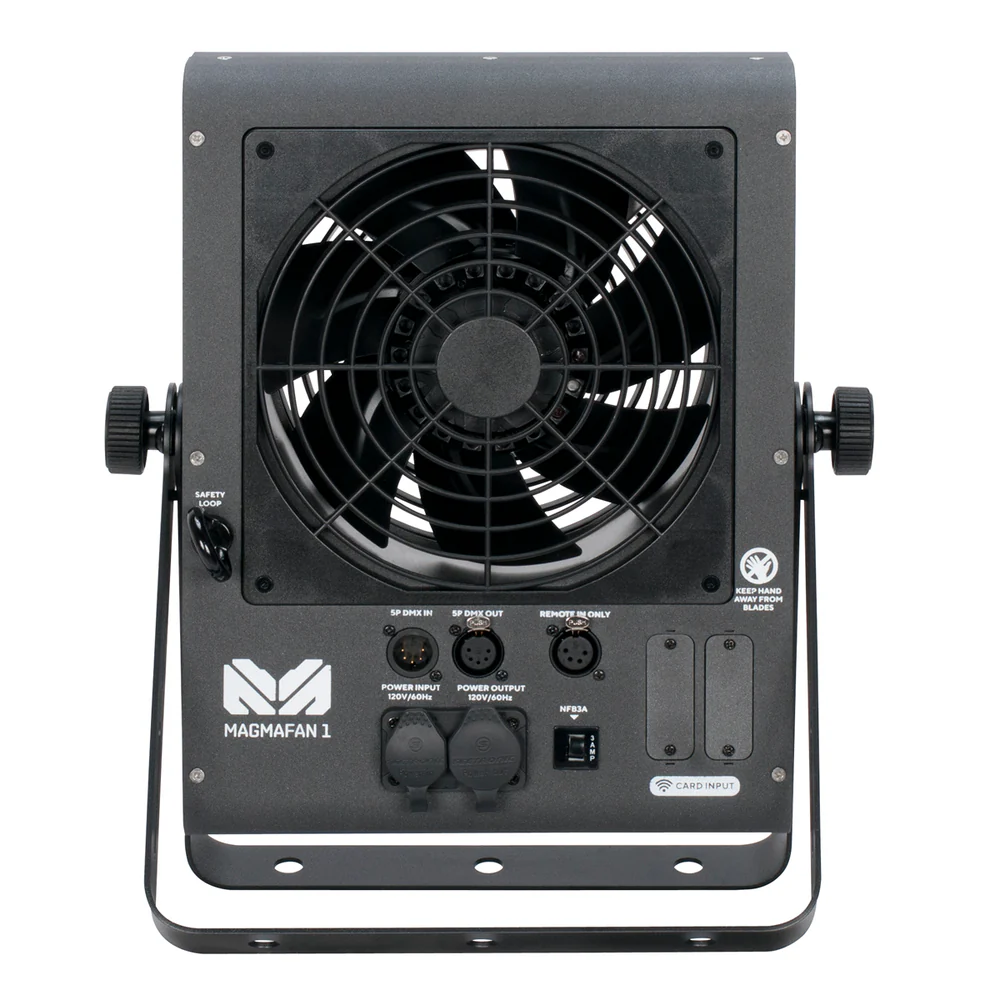

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.2 in. (335mm)
Width: 4.9 in. (125mm)
Height: 15.6 in. (395mm)
Weight: 15 lbs. (6.8kg)
ELECTRICAL
US Version: 120VAC 60Hz, Europe Version: 230VAC/240VAC 50Hz
3A (NFB US Version)
2A (NFB EU Version)
Max Power Consumption: 120W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
OPTIONAL ACCESSORIES
MagFly
MagRF
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
