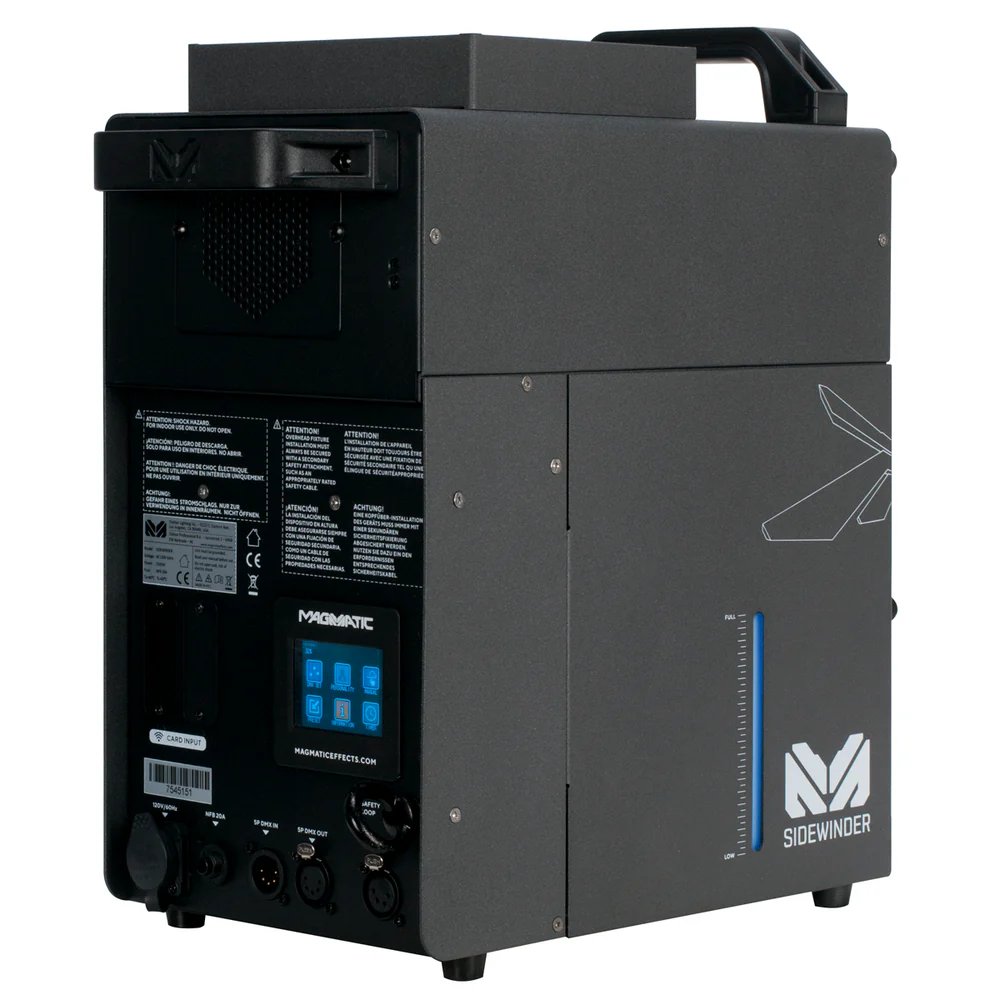

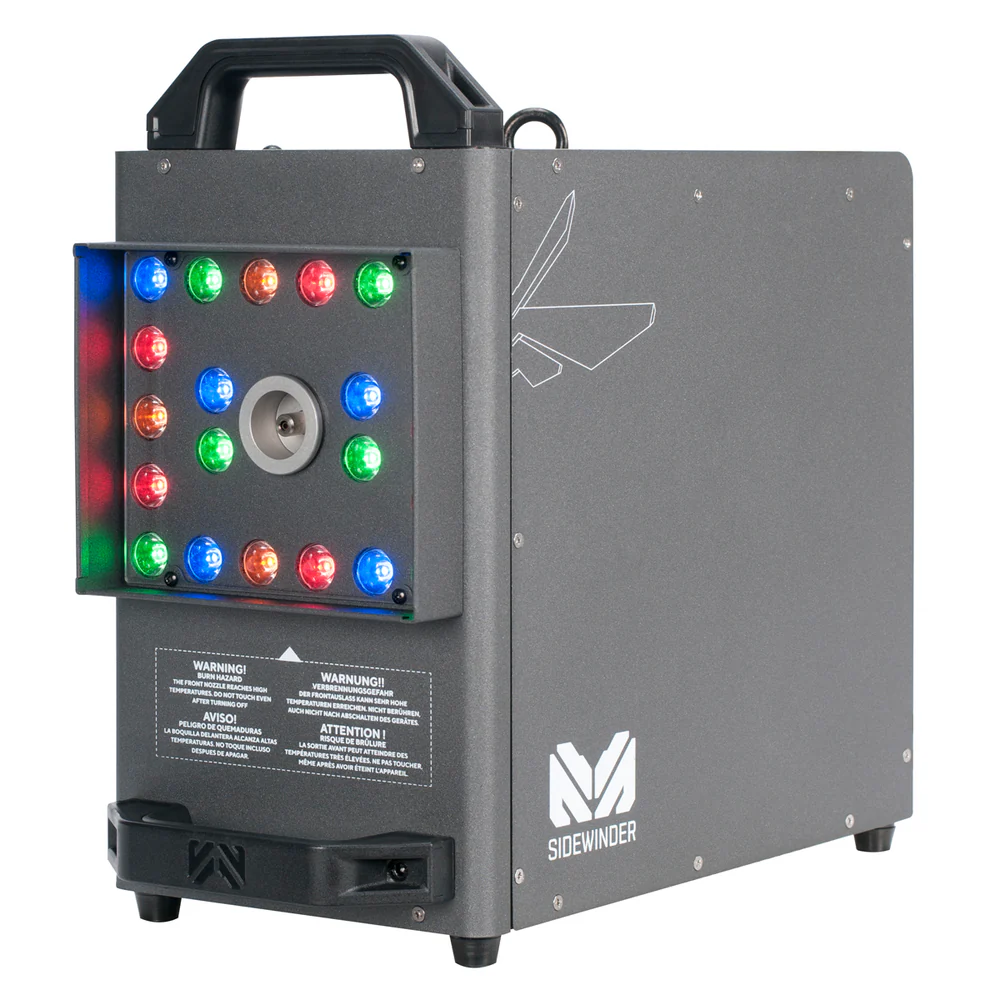

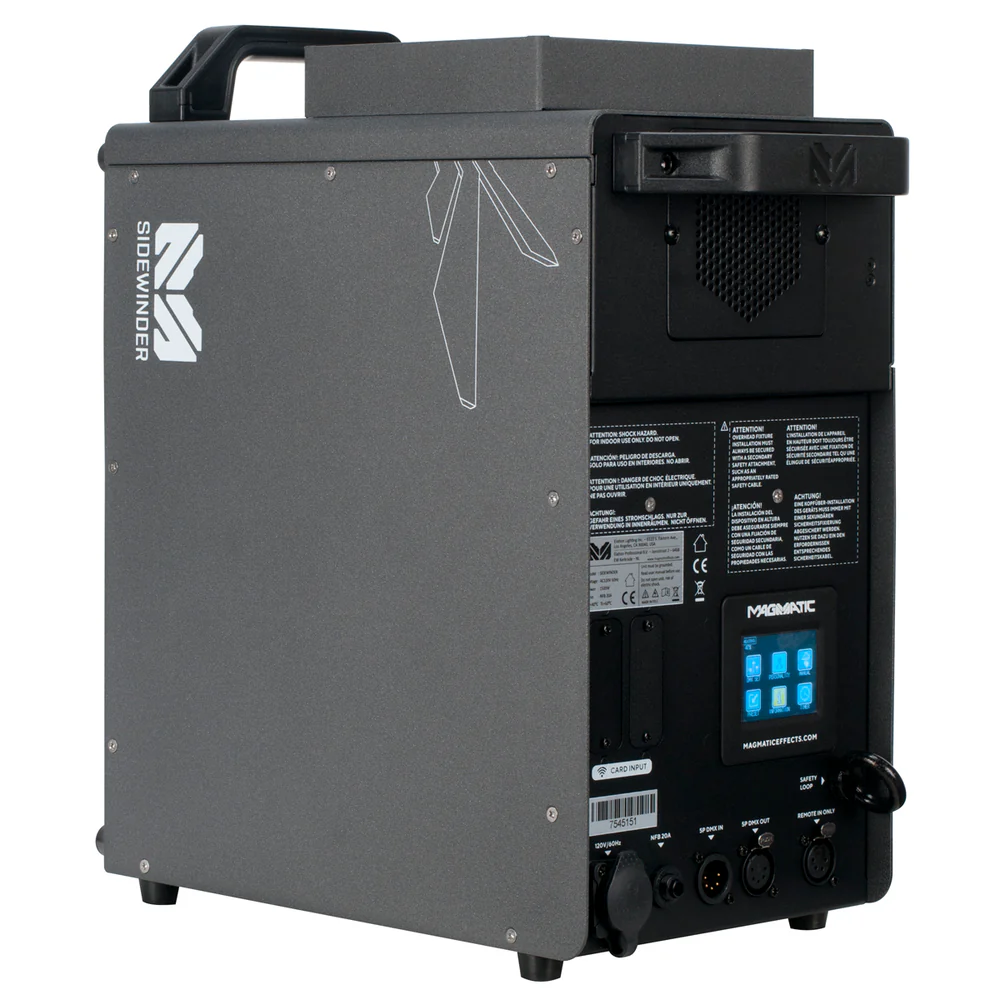

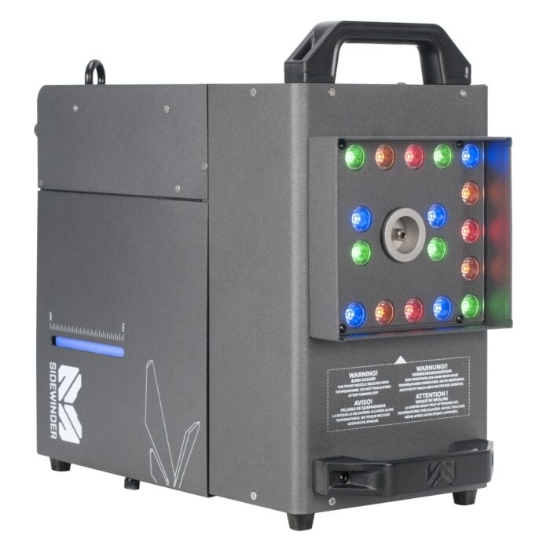

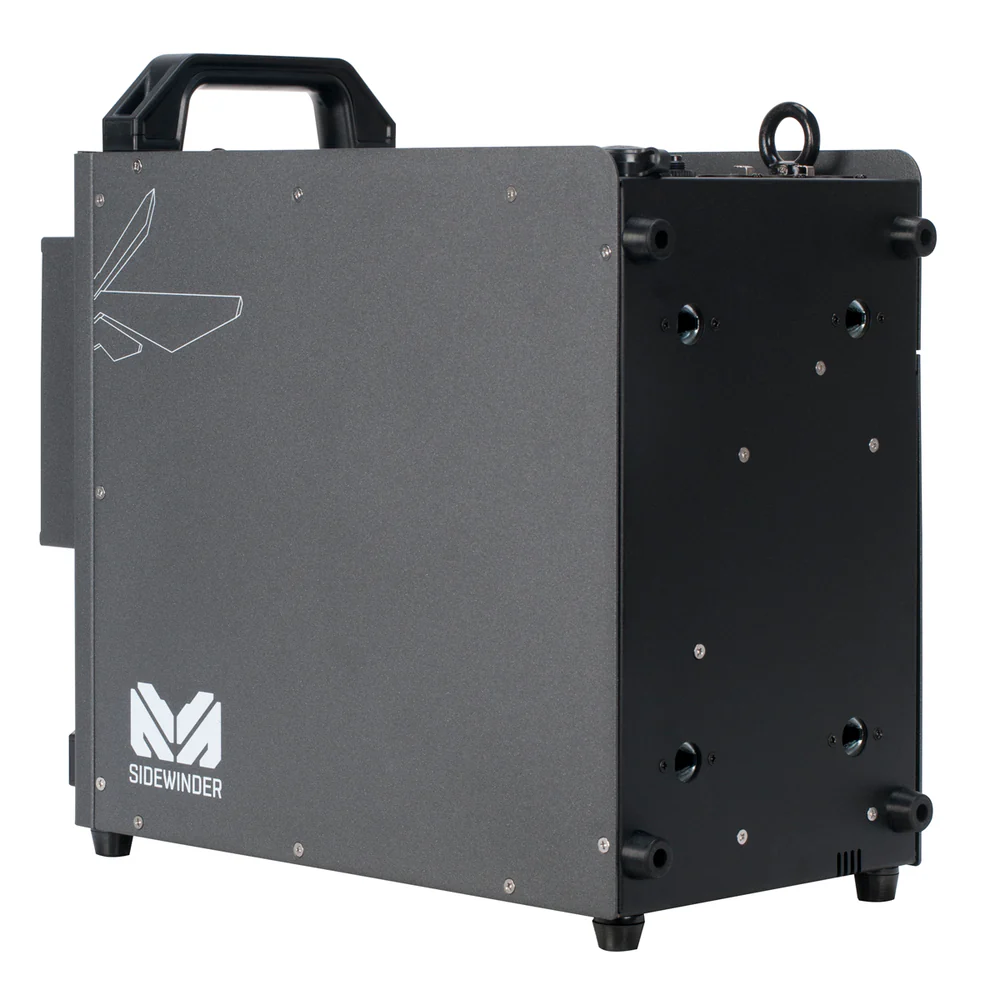

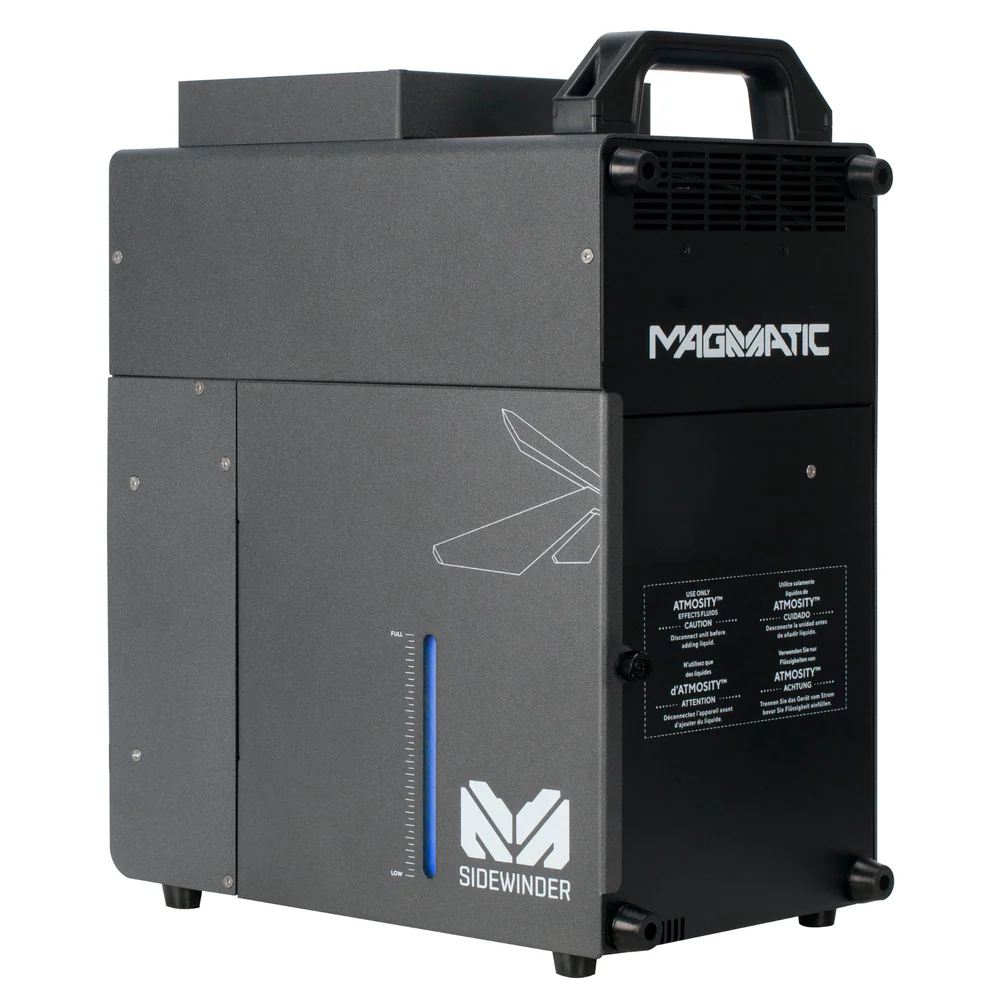

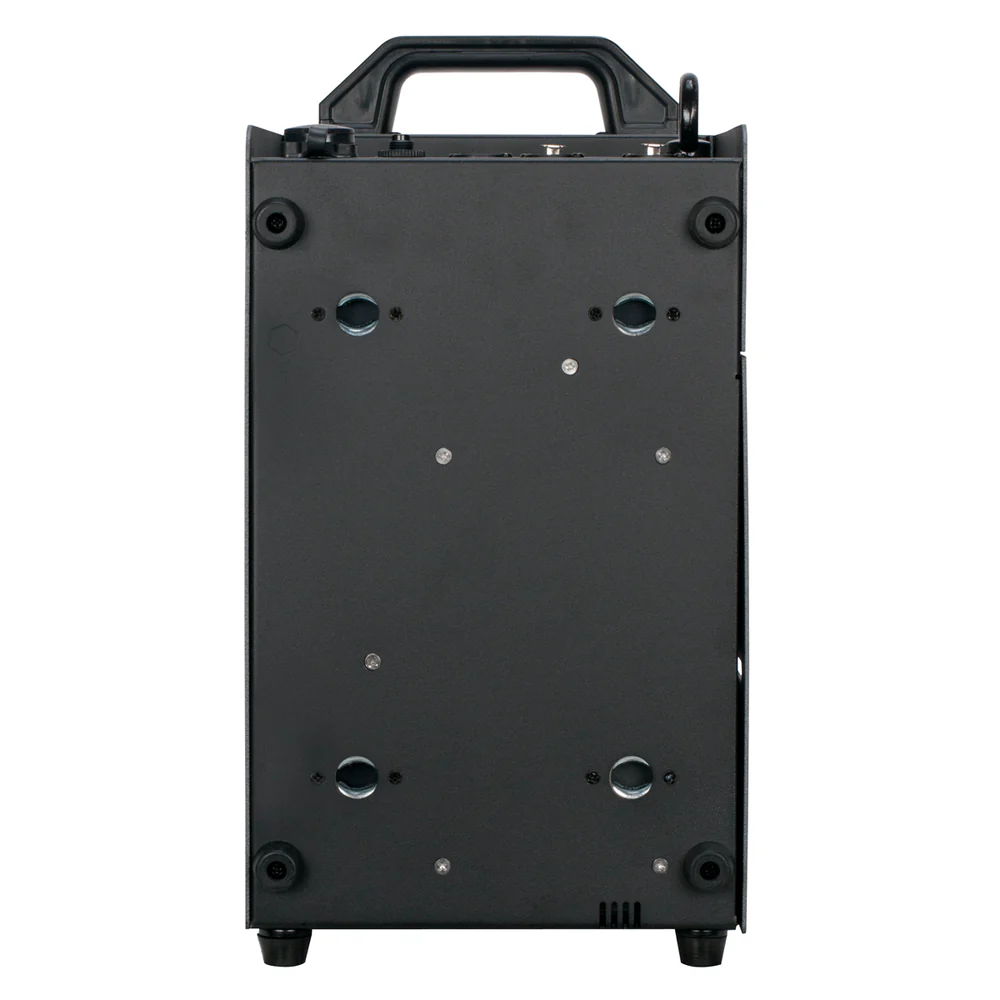

Magmatic - Sidewinder High Velocity Vertical Fog Machine

20.0% Off

There are no reviews yet

Magmatic - Sidewinder

SKU: EL-MM-SIDE

50,000 cu.ft per minute
Four, 8-second 20-ft bursts
180° multi position fog burst

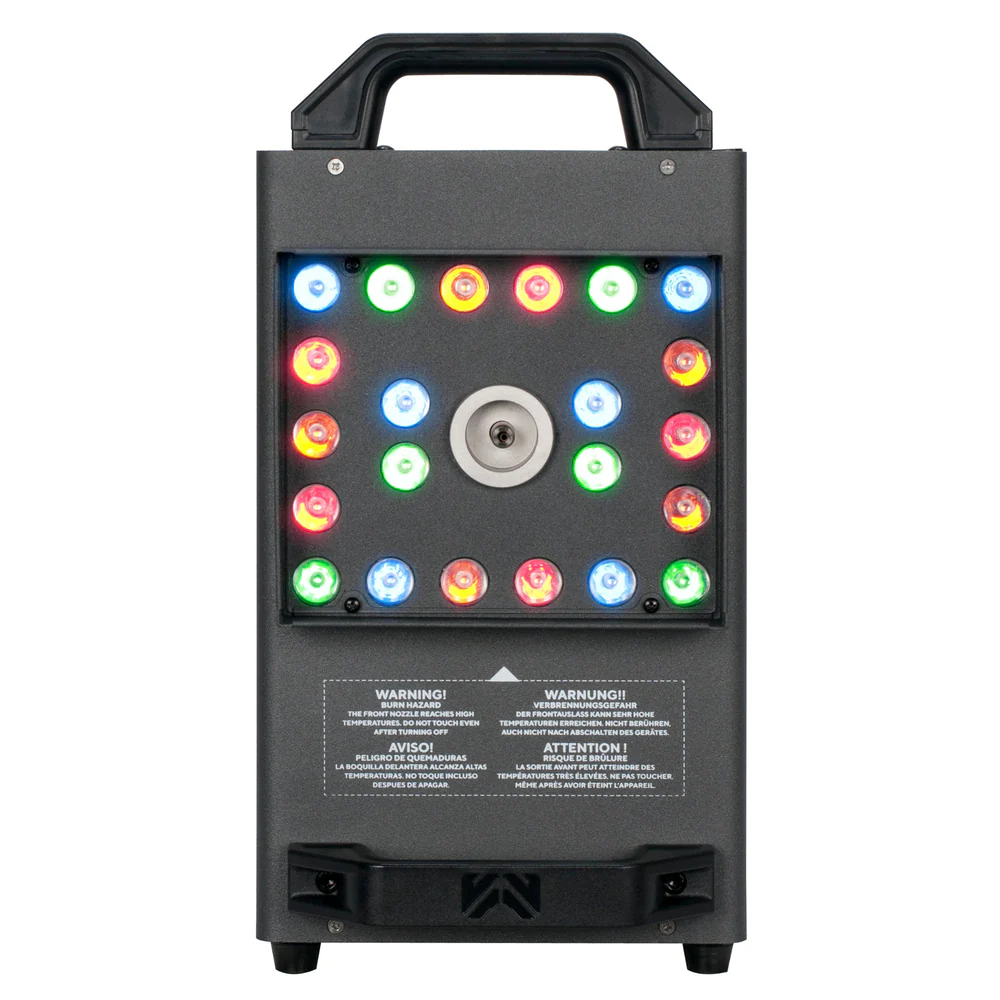

22, 3 watt RGBA LED's (Red X5 Green X6 Blue X6 Amber X5)
Use of LEDs even without the use of Fog
Durable, tour-ready, aluminum housing

Downloadable Documents

Manual

CutSheet

Cut Sheet

Actor's Equity

Cleaning

Price: $1,071.00

Retail: $1,338.00

50,000 cu.ft per minute
Four, 8-second 20-ft bursts
180° multi position fog burst
22, 3 watt RGBA LED's (Red X5 Green X6 Blue X6 Amber X5)
Use of LEDs even without the use of Fog
Durable, tour-ready, aluminum housing

Downloadable Documents

Manual

CutSheet

Cut Sheet

Actor's Equity

Cleaning

Availability: In Stock
Usually ships In 1-2 Business Days

In Stock and Ready to Hop Froggy's Fog Frog

Out of Stock

Back Order

ETA Date :

Free Shipping

Product Details

The Magmatic Sidewinder is a high velocity CO2 simulator fog machine. Including 22 x 2 watt RGBA LEDs. The Sidewinder can burst fog in multiple positions, rotating 180° degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

Specifications

PERFORMANCE

Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output: 12 Seconds @ Full
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.

COMPATIBLE FLUID

Atmosity Extreme Filtered Fog Fluid (AEF-4L)

CONSTRUCTION

Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process

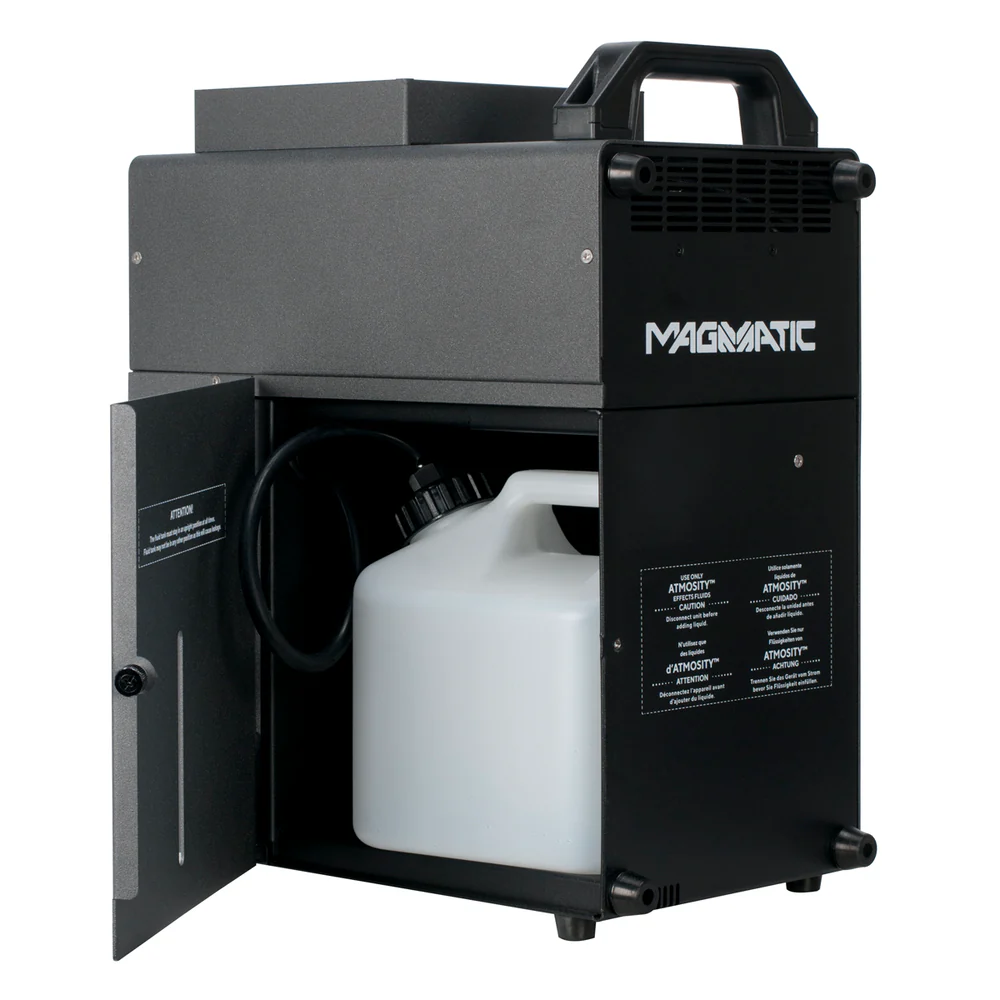

Sealed Fluid Reservoir

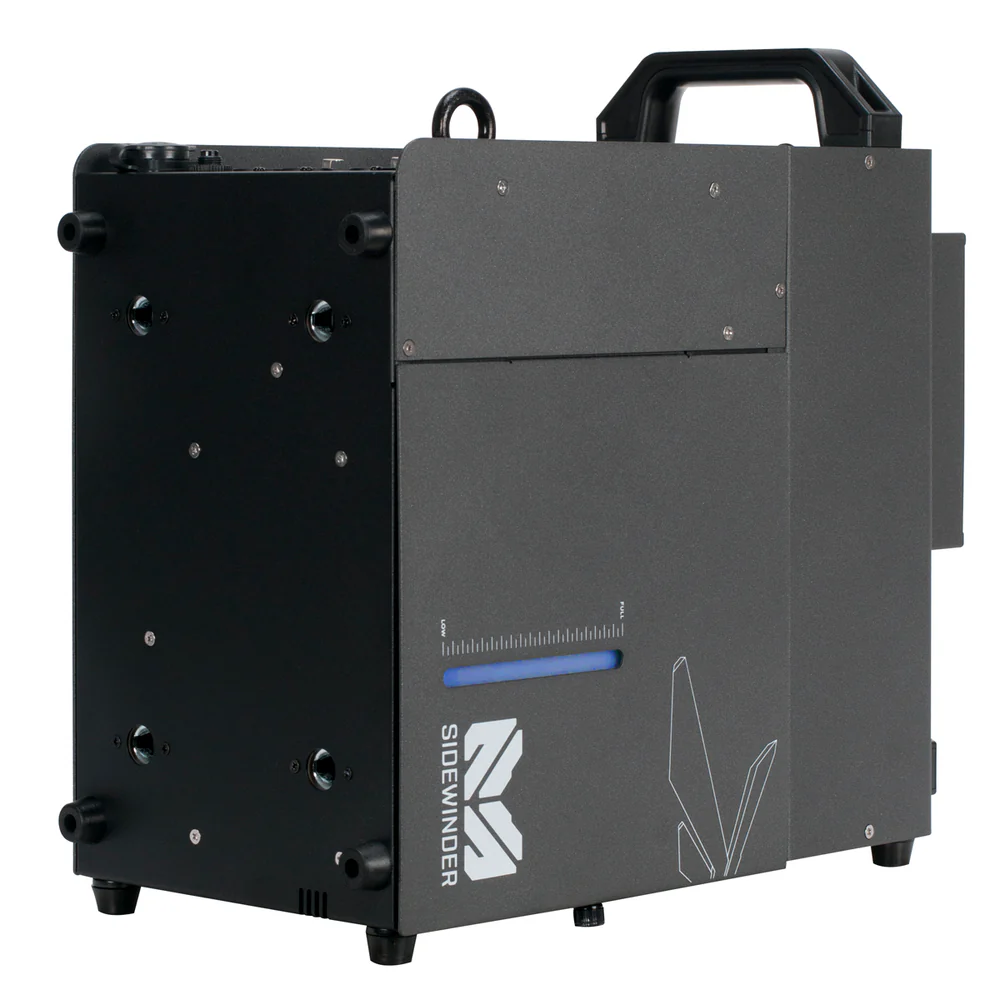

External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL

3 DMX Channel Modes (1 / 4 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

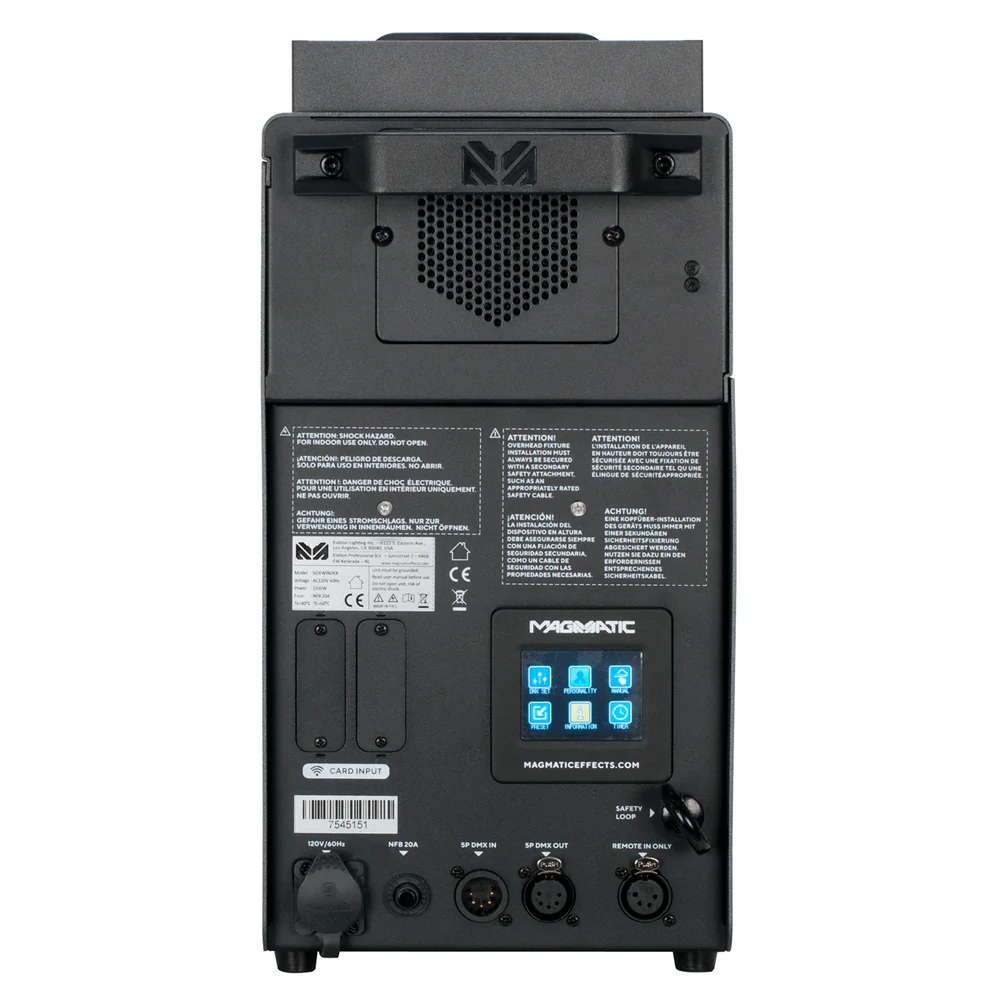

CONNECTIONS

5-pin locking XLR, In/Out Data Connectors
IP65 Locking Input Power Connector
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 14.80 in. (376mm)
Width: 7.60 in. (193mm)
Height: 16.26 in. (413mm)
Weight: 31.06 lbs. (14.08kg)

ELECTRICAL

AC 100-120V - 50/60Hz
9A (NFB) Resettable Breaker
Max Power Consumption: 1560W

THERMAL

Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)

APPROVALS / RATINGS

CE | cETLus (pending) | IP20

Specifications and documentation subject to change without notice.
