Physical
Length: 18.9"
Width: 8.3"
Height: 15.3"
Net Weight: 30.8 Lbs.
Performance
Fluid consumption
Up to 240 ml/min (full power mode)
Up to 40 ml/min with continuous fog
Ready time: 12 Min.
Control and Programming
Control options: DMX512, RDM, Modbus RTU, JT remote, Dial Cable remote control, radio remote control (optional), integrated timer, stand-alone
Fog: Variable output control, 0-100%
DMX channels: 1
Protocols: DMX512, RDM, Modbus RTU, JT remote
Construction
Housing: Metal
Color: Red and Black
Display: 1.3" OLED Display, Membrane Keyboard
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir
Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal |
Connections
AC Power: PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
- Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1700 W
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items - Fluid reservoir, 5L Tank
- Power input cable: PowerCON TRUE1

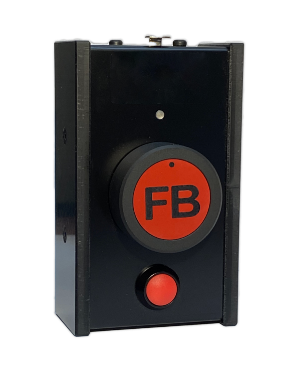

- SG-XLR commander wired remote
Accessories
Fog Scent Additives
Dial Remote
12' XLR cable
Approved fluids*:

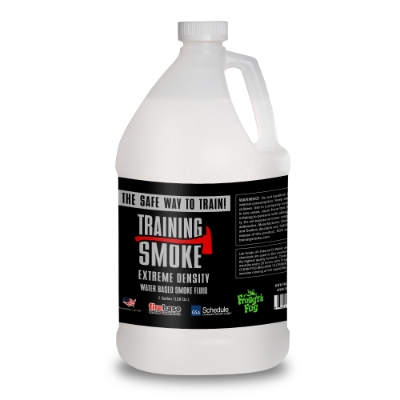

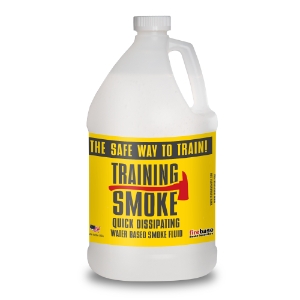

Water-Based Training Smoke Fluids
*Various sizes available - contact us or see 'Fluids' product pages for details
|
