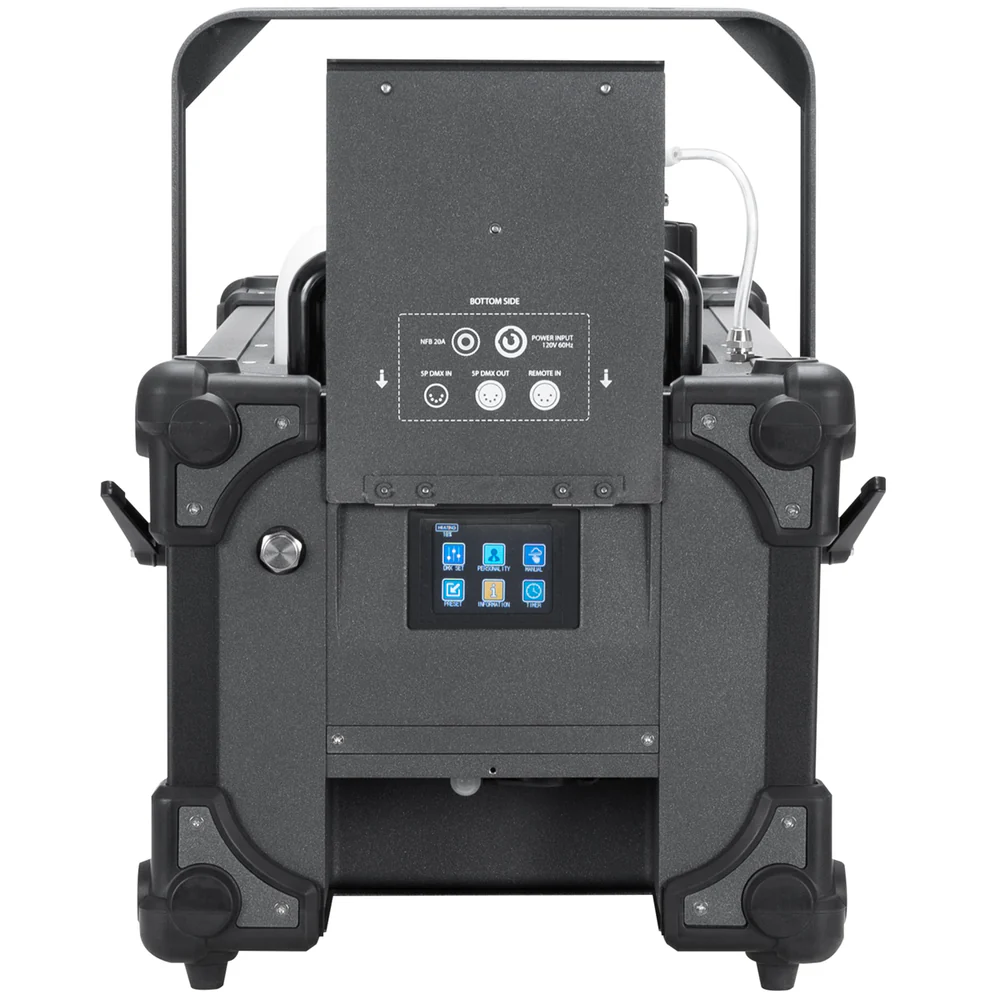

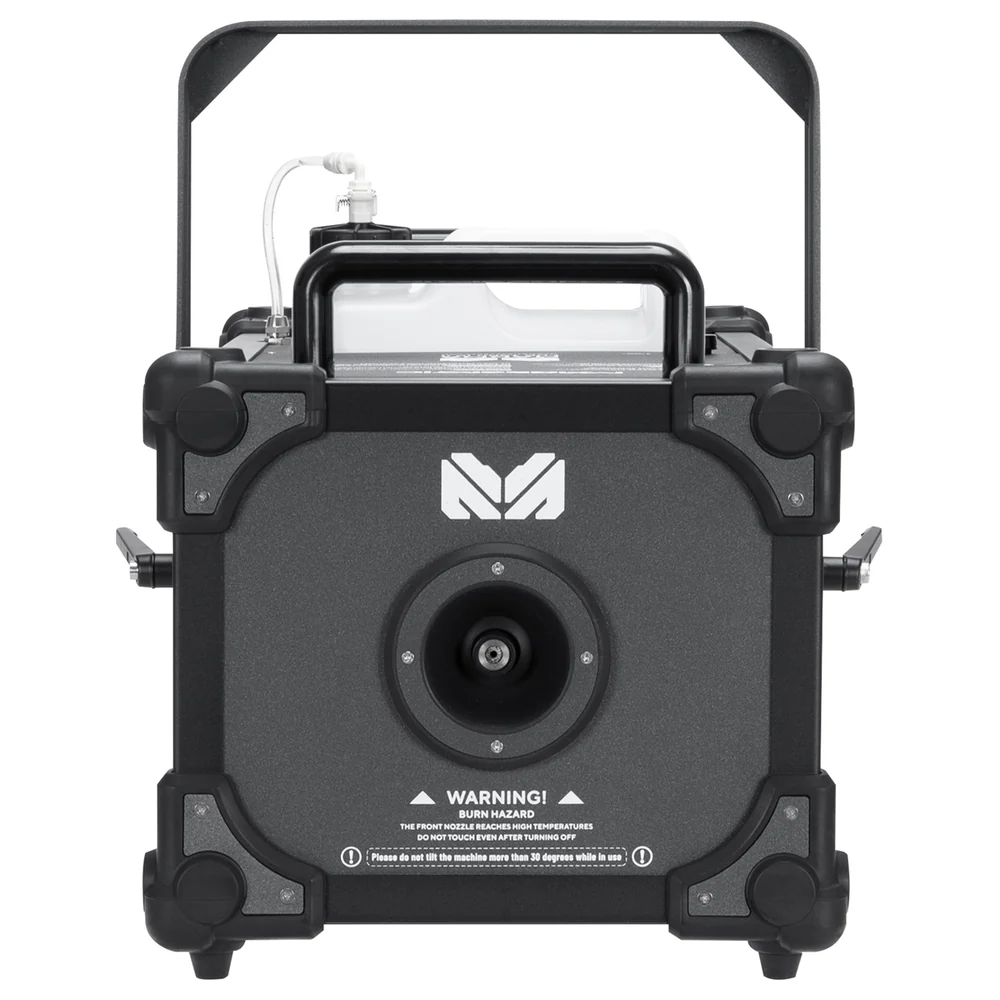

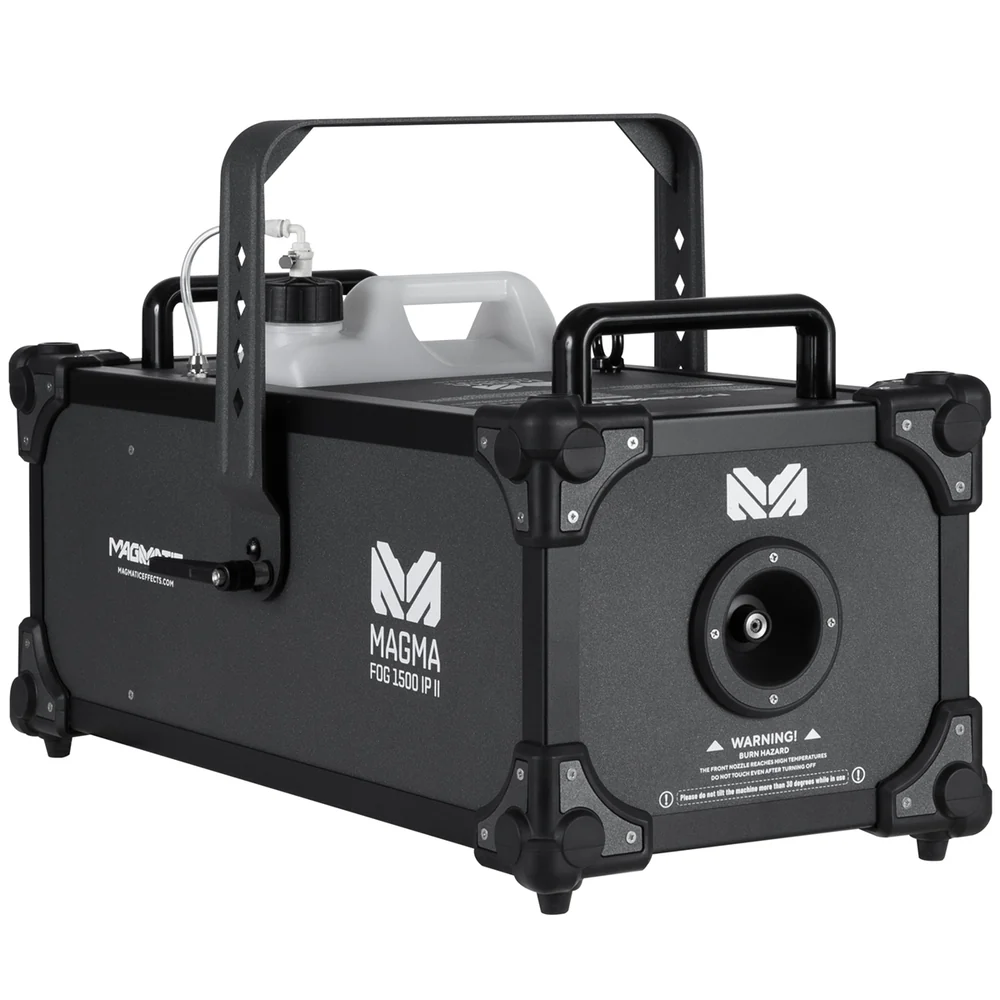

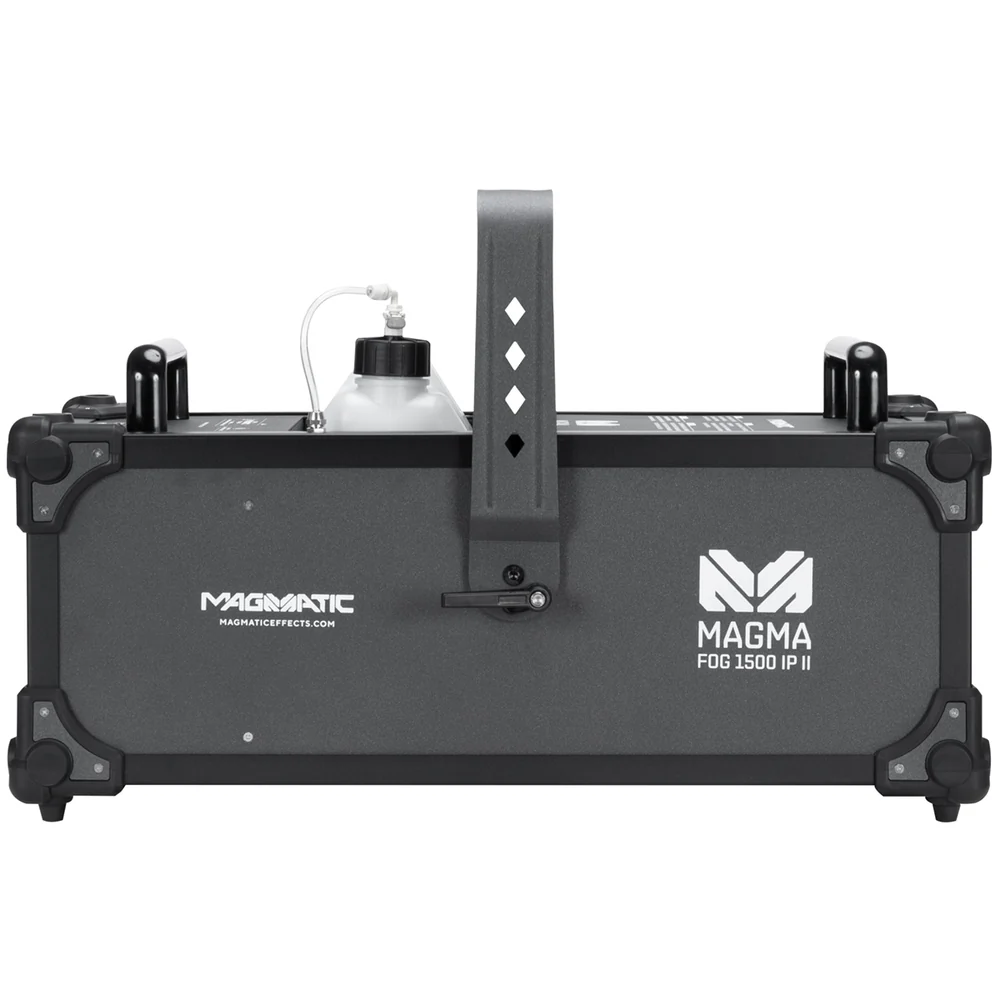

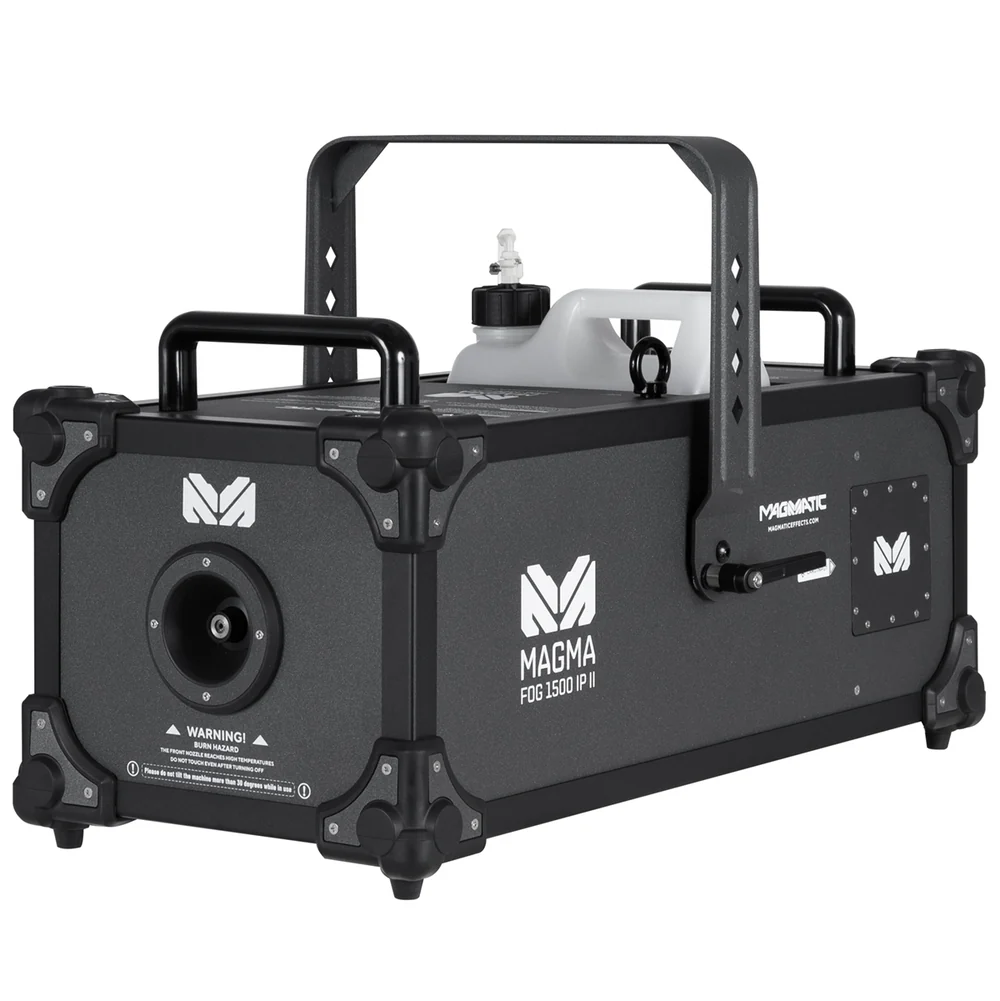

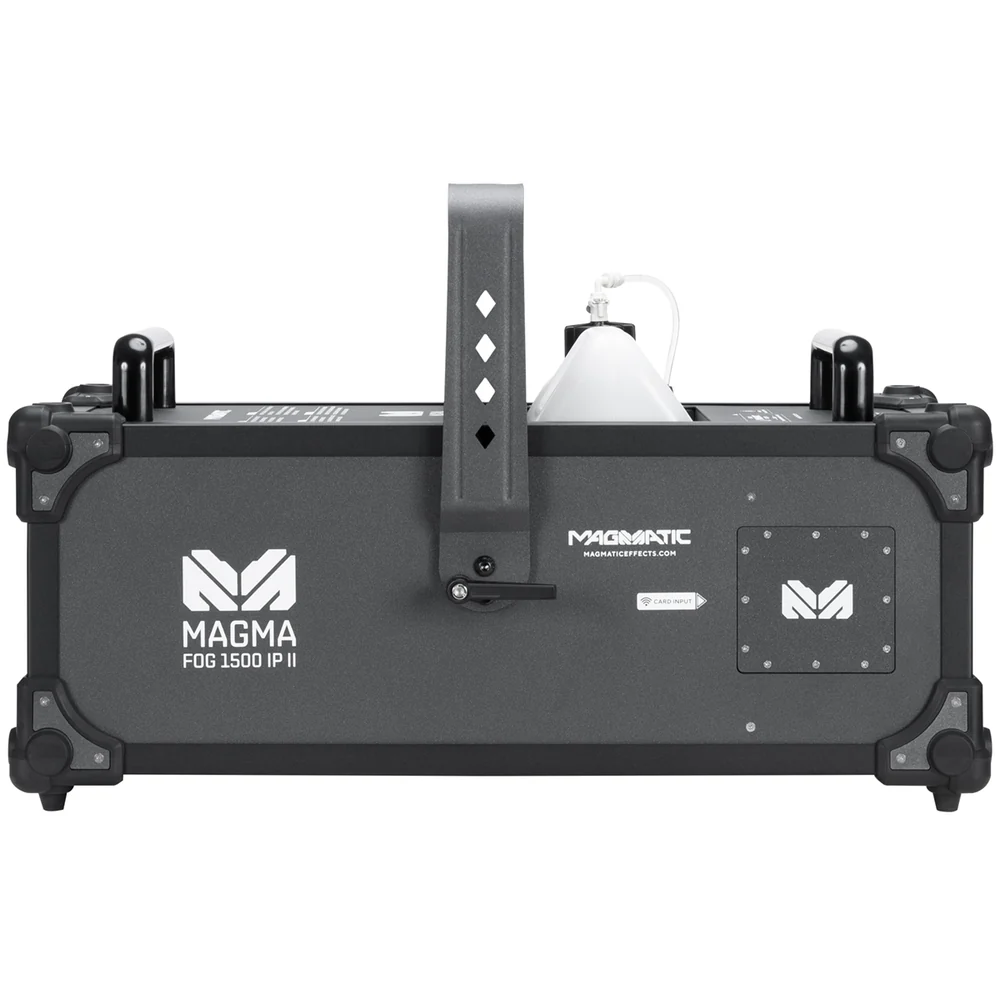

The MAGMA FOG 1500 IP-II™ is a 1700W water based, IP67 rated fog machine with a maximum output of 60,000 CFM (cu ft/min). Features include an easy-to-use onboard LCD touch screen, an intuitive DMX-512 and RDM control, and optional wired and wireless remote-control. Each MAGMA FOG 1500 IP-II comes equipped with a thermally protected heat exchanger that has an initial warm up time of 14 minutes, with a fluid consumption rate of 6.76 oz (200 ml/min). This unit is designed with a durable aluminum housing, IP65 locking power in, IP65 locking 5pin XLR connectors (DMX In/Out), a 5-liter (1.32 gallon) tank, two heavy duty carry handles, and a hanging bracket for truss mounting.
PERFORMANCE
Rated Power: 1700W
Max Output: 60,000 CFM* (cu ft/min.)
Ready Time: Initial = 14 Minutes*
Capacity: 1.32 gallons (5 liters)
Fluid Consumption: 6.76 oz/min (200 ml/min)
CONSTRUCTION
Thermally Protected Heat Exchanger
Rugged Case Design
Convenient Carry Handles
CONTROL
3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and MAGREMOTE Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector, DMX In/Out
IP67 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 25.5 in. (648mm)
Width: 14.6 in. (372mm)
Height: 16.2 in. (411mm)
Weight: 74.3 lbs. (33.7kg)
ELECTRICAL
AC120V 60Hz (US Version)
Max Power Consumption: 1700W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 149°F (65°C)
APPROVALS / RATINGS
CE | IP67 | RoHS | UKCA
